Differential Pressure Hvac Ventilation Air Conditioning Smart Pressure Transducer

Brand Name : WNK

Model Number : WNK808N1

Place of Origin : Anhui，China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : -45 to 85ºC,-40 to 80ºC for LCD header

Delivery Time : To be negotiated

Packaging Details : Each set in one individual carton packing with protection

Measured media : Air, Gas

Pressure Range : -0.25-0.25kPa/-0.5-0.5kPa/-1-1kPa/-2-2kPa/-7-7kPa/-100-100kPa

Output signals : 2-Wire 4-20mA/0-10V/RS485/2xPNP

Accuracy : ±0.1%FS

Power supply : 12-32V DC

Electrical Connections : Terminal or M12

External load : ≥500Ω

Contact Now

4-20ma Differential Pressure Transmitter For Hvac Ventilation Air Conditioning

Product Description

Outstanding advantages and main selling points of the productHigh precision, slight differential pressure: measuring range is within ±1KPa, accuracy grade is ±0.1% FS.Minimum range: ±50Pa, accuracy grade ±0.5% FS.Real-time display, no lag: response time ≤100ms, real-time display of measurement data, no damping delay.High and low end interchange: Through key operation, the test high and low voltage ports can be interchanged.

Application

It is widely used in various industrial automatic control occasions, involving many industries such as fire protection, environmental protection, medical treatment, aviation, and industrial control. Such as negative pressure ward, central air-conditioning, elevator warehouse and other slight differential pressure measurement.

Intelligent Macro Differential Pressure Transmitter
Applicable media	Gas, Steam
Pressure Measurement	Gauge pressure, Differential pressure
Pressure range	-0.25-0.25kPa/-0.5-0.5kPa/-1-1kPa/-2-2kPa/-7-7kPa/-100-100kPa
Accuracy	±0.1%FS
Stability	0.8%F.S./Year
Max overload	250% of sensor range
Output signals	2-Wire 4-20mA/0-10V/RS485/2xPNP
Electrical Connections	Terminal or M12
Power Supply	12-32V DC
Compensation Temperature	0-60℃

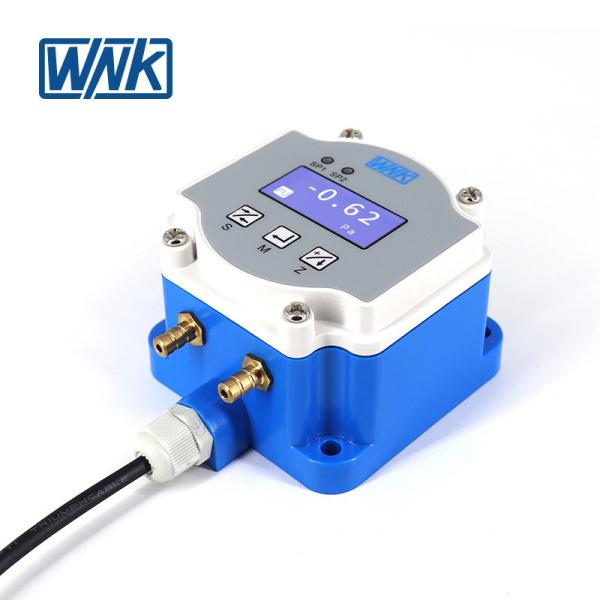

Differential Pressure Hvac Ventilation Air Conditioning Smart Pressure Transducer

Product Show

Differential Pressure Hvac Ventilation Air Conditioning Smart Pressure Transducer
