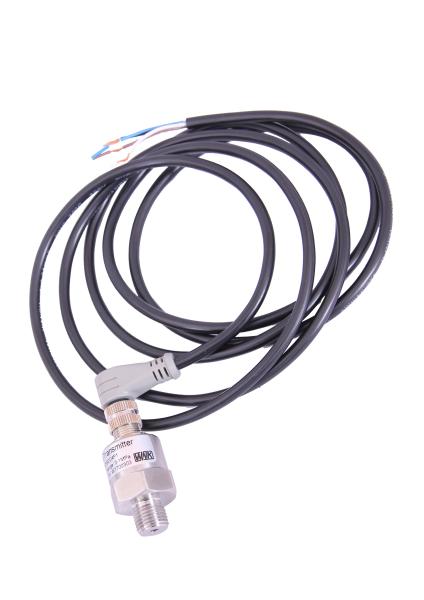

IP67 WNK80MA Barometric Air Pressure Sensor With Temperature Compensation

Brand Name : WNK

Model Number : WNK80MA

Certification : CE, SGS, ISO9001

Place of Origin : Anhui, China

MOQ : 1 piece

Price : Negotiation

Payment Terms : D/A, L/C, T/T, Western Union, MoneyGram

Supply Ability : 5000 Piece/Pieces per Month Pressure Transmitter

Packaging Details : Sea-Worthy Packing or Air-Worthy Packing

Pressure Range : 0-600bar

Output : I2C, SPI, 0.5-4.5V, 4-20ma And Customization

Respond Time : ≥1ms

Overload Pressure : 3-5 Times

Sensor Type : Iot Pressure Sensor

Working Temperature : -40 -135°C

Warranty : 12 Months

Ingress Protection : IP67

Accuracy : 1%

Compensation Temperature : -20 -70°C

Housing Material : Stainless steel 304

Contact Now

Economic WNK80MA Weather Station Barometric Air Pressure Sensor with Temperature Compensation

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Parameter:

Applicable media	Liquid, gas and steam
Pressure range	0-20kPa~50MPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, absolute pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

Electrical connection

IP67 WNK80MA Barometric Air Pressure Sensor With Temperature Compensation

Application:

WNK80MA is solution for below applications:
Pressure measurement of gas, vapor or liquid in various areas;
Liquid level, volume or mass measurement;
Integrated in a variety of user-defined solutions;
Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;
