Industrial Smart Differential Pressure Transmitter 4-20ma Gauge Or Absolute With Adjustable Display

Brand Name : WNK

Model Number : WNK55

Certification : CE, SGS

Place of Origin : Hefei, China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 200 set/day

Delivery Time : 3~5 working days

Packaging Details : standard export carton packing

Input : -100Kpa - 600bar

Analog Ouput : 4-20ma, 0.5-4.5V

Applicable Medium : Water, Gas, Liquid, Oil

Approvals : CE, Rhos

IP Rank : IP66, IP67

Housing material : Aluminium

Power Supply : 12-30V DC

Exoplosion proof : ExiaIICT4

Contact Now

4-20ma Gauge Or Absolute Industrial Smart Differential Pressure Transmitter With Adjustable Display

WNK5 series pressure transmitters are suitable for:
Gauge, absolute and differential pressure measurement in gases, steam or liquids in all areas
of process control field.
Level, volume or mass measurement in liquids.
Working with detecting element, measure the flow of gases, steam and liquid flow.( volume and
mass flow)
High process temperatures up to 280℃ with diaphragm seals.
High pressure up to 700bar.

Features

1. reference accuracy up to 0.2%.
2. Long-term stability
3. Intrinsically safe and flameproof explosion proof
4. Range down ratio 100:1
5. With Modbus communication protocol

Applicable Field
1. Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement.
2. Level, volume or mass measurement in liquids.
3. Working with detecting element, measure the flow of gases, steam and liquid flow.( volume and mass flow)
4. High pressure up to 700bar.

Specifications

Measured media	liquid, gas and steam
Pressure range	-100KPa~70MPa
Output signals	4~20mA, Modbus-RS485, 1-5V
Accuracy	0.2%
Stability	±0.3% of URL for 5 years
Temperature drift	±0.05% of URL/10ºC
Display	LCD, or pointer optional
Housing material	Aluminum14
Process connection	M20×1.5;G1/2;1/2NPT; flush diaphragm
Protection class	IP66/67
Power Supply	10.5-55V DC 10.5-30V DC
Ambient temperature	-40 to 85ºC,-40 to 80ºCfor LCD header
Storage temperature	-45 to 85ºC,-40 to 80ºC for LCD header ;
Dimension	with display: 84111052 (mm)
Net Weight	1.1kg (without bracket or process connection)

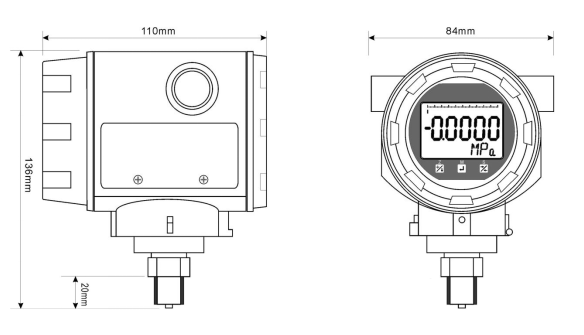

Installation diagram

Industrial Smart Differential Pressure Transmitter 4-20ma Gauge Or Absolute With Adjustable Display

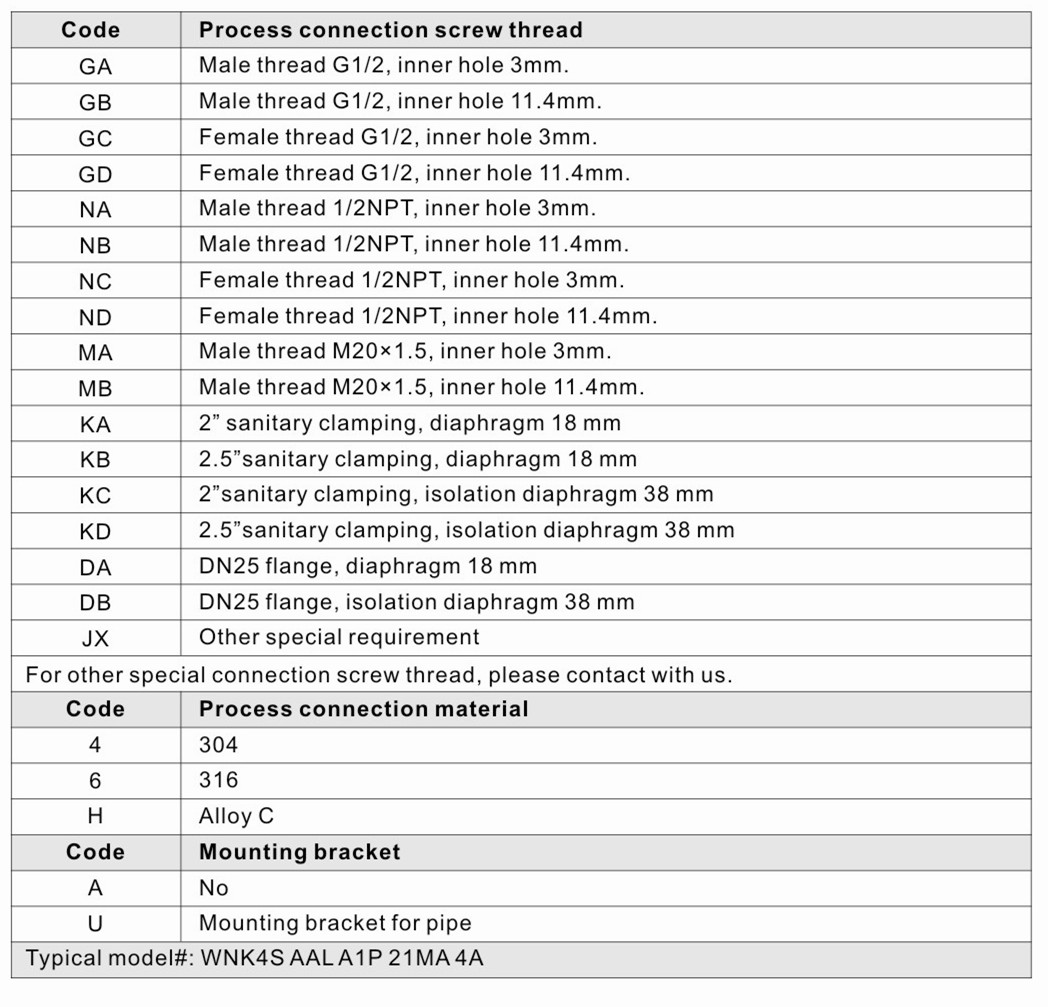

Ordering sheet
